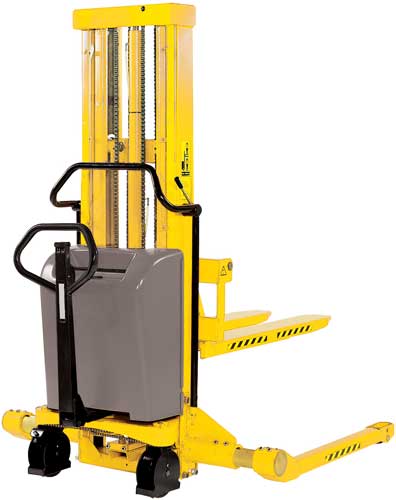

Southworth PMLS
 |
Southworth PML & PMLS Industrial Pallet StackersA Southworth stacker is like having a forklift, but at a fraction of the cost. They are much easier to integrate into your operation because unlike forklifts that require certified operators, any trained employee can use them.Lift is achieved by simply pressing a push button that is integrated into the comfort grip handle. A convenient battery indicator gives charge status at a glance. The integral battery charger makes recharging a breeze. They are available in fork over design for use with any open-bottom pallet orskid, and straddle design for use with any pallet or skid, even those with closed bottoms. Their versatility makes them ideal for feeding pallet rack as well as any other pallet storage or transfer operations throughout the plant or warehouse. And because they are a Southworth product, your investment is secure and guaranteed. |
| PML Fork Over Pallet Stackers | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Capacity (LBS) | Load Center | Height | Overall Size (L x W x H) | Fork Size (L x W) | Ship Weight (LBS) | Quote Form | ||||||||
| Lowered | Raised | ||||||||||||||
| PML-22-36-ME | 2200 | 24" | 3.25" | 36" | 64" x 27" x 52.5" | 45" x 22" | 505 | Quote | |||||||
| PML-30-36-ME | 3000 | 24" | 3.25" | 36" | 64" x 27" x 52.5" | 45" x 22" | 505 | Quote | |||||||
| PML-22-47-ME | 2200 | 24" | 3.25" | 47" | 64" x 27" x 60" | 45" x 22" | 535 | Quote | |||||||
| PML-30-47-ME | 3000 | 24" | 3.25" | 47" | 64" x 27" x 60" | 45" x 22" | 535 | Quote | |||||||
| PML-22-63-ME | 2200 | 24" | 3.25" | 63" | 64" x 27" x 76" | 45" x 22" | 550 | Quote | |||||||
| PML-30-63-ME | 3000 | 24" | 3.25" | 63" | 64" x 27" x 76" | 45" x 22" | 550 | Quote | |||||||
| PML-22-80-ME | 2200 | 24" | 3.25" | 80" | 64.38" x 27" x 98" | 45" x 22" | 675 | Quote | |||||||
| PML-30-80-ME | 3000 | 24" | 3.25" | 80" | 64.38" x 27" x 98" | 45" x 22" | 675 | Quote | |||||||
| PMLS Straddle Pallet Stackers | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Capacity (LBS) | Load Center | Height | Overall Size (L x W x H) | Fork Size (L x W) | Ship Weight (LBS) | Quote Form | ||||||||
| Lowered | Raised | ||||||||||||||
| PMLS-22-35-ME | 2200 | 24" | 2.5" | 35" | 63" x 43.5"-57.5 x 52.5" | 42" x 14"-31" | 515 | Quote | |||||||
| PMLS-30-35-ME | 3000 | 24" | 2.5" | 35" | 66" x 43.5"-57.5 x 52.5" | 42" x 14"-31" | 515 | Quote | |||||||
| PMLS-22-46-ME | 2200 | 24" | 2.5" | 46" | 63" x 43.5"-57.5 x 60" | 42" x 14"-31" | 535 | Quote | |||||||
| PMLS-30-46-ME | 3000 | 24" | 2.5" | 46" | 66" x 43.5"-57.5 x 60" | 42" x 14"-31" | 535 | Quote | |||||||
| PMLS-22-62-ME | 2200 | 24" | 2.5" | 62" | 63" x 43.5"-57.5 x 76" | 42" x 14"-31" | 550 | Quote | |||||||
| PMLS-30-62-ME | 3000 | 24" | 2.5" | 62" | 66" x 43.5"-57.5 x 76" | 42" x 14"-31" | 550 | Quote | |||||||
| PMLS-22-79-ME | 2200 | 24" | 2.5" | 79" | 63.5" x 43.5"-57.5 x 98" | 42" x 14"-31" | 675 | Quote | |||||||
| PMLS-30-79-ME | 3000 | 24" | 2.5" | 79" | 63.5" x 43.5"-57.5 x 98" | 42" x 14"-31" | 675 | Quote | |||||||
Note: Ship Weight does not include weight of battery.
4 Adj. Straddle I.D.s available: 33"-37", 37"-44", 44"-51", 49"-51". Desired I.D. is set at factory prior to shipping.
 |
Adjustable |
 |
Easy-Roll Wheels: |
 |
Push-Bar Handle: |
 |
Brake Pads: |
 |
Battery Status Indicator/Integral 110V Charger: |
 |
See Thru |
 |
Exclusive Safety |
 |
E-Stop: |
 |
Locking |
 |
Dual-Wheel |
 |
User-Adjustable |
 |
Ergonomic Contoured Handle: comfortable and easy to use |
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
